Automatic Fabric Packing Line Packing Machine
Automatic Fabric Packing Line Packing Machine
Automatic Fabric Packing Line Packing Machine
  • Automatic Fabric Packing Line Packing Machine
  • Automatic Fabric Packing Line Packing Machine
  • Automatic Fabric Packing Line Packing Machine

Automatic Fabric Packing Line Packing Machine

    Payment Type: L/C, T/T
    Min. Order: 1

Additional Info

Productivity: 300set/Year

Supply Ability: 300set/Year

Certificate: CE, ISO9001: 2000

Product Description

Model NO.
LK-BZ-2800
Warranty
1 Year
Customized
Customized
Condition
New
Trademark
LINK
Transport Package
Wrapped with PE Film+Wooden Pallet
Specification
L2740*W3140*H2360MM (customized)
Origin
China
HS Code
8422400000
Model NO.
LK-BZ-2800
Warranty
1 Year
Customized
Customized
Condition
New
Trademark
LINK
Transport Package
Wrapped with PE Film+Wooden Pallet
Specification
L2740*W3140*H2360MM (customized)
Origin
China
HS Code
8422400000
Textile finish Automatic Fabric Packing Machine

Usage:

This structure type apply to the continuous automatic packing for rolled cloth. Rolled cloth is sent to the packing machine without orders and get packed. Packed rolls is detected by sensor and direction is controlled by PLC. Then go to the high conveyor by climb device and is sent to the appointed cloth carts, which making automatic packing and automatic conveying become reality. Achieved the purpose of automatic control packing line and saved laboring cost, improved production efficiency.
 Automatic Fabric Packing Line Packing Machine
Automatic Fabric Packing Line Packing Machine
Automatic Fabric Packing Line Packing Machine

Technical parameters
machine mode:LK-BZ-2800L
packing rate : 4-6 rolls/min
host machine size:L2740*W3140*H2360CM
packing size: roll diameter 100mm-500mm
PE film thickness:0.04-0.1mm
air pressure requirements: 6KG/CM3
packing technology: automatic color separation packing technology

Technical Instruction

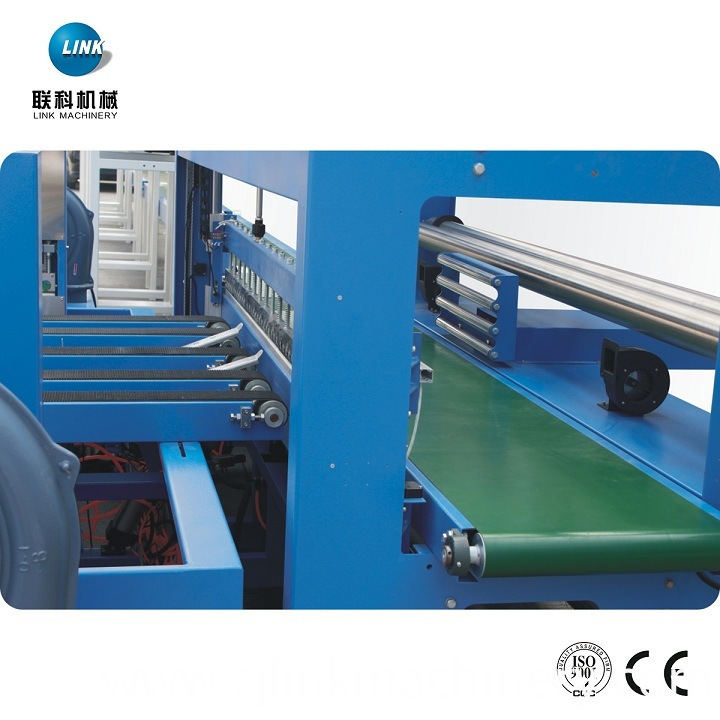

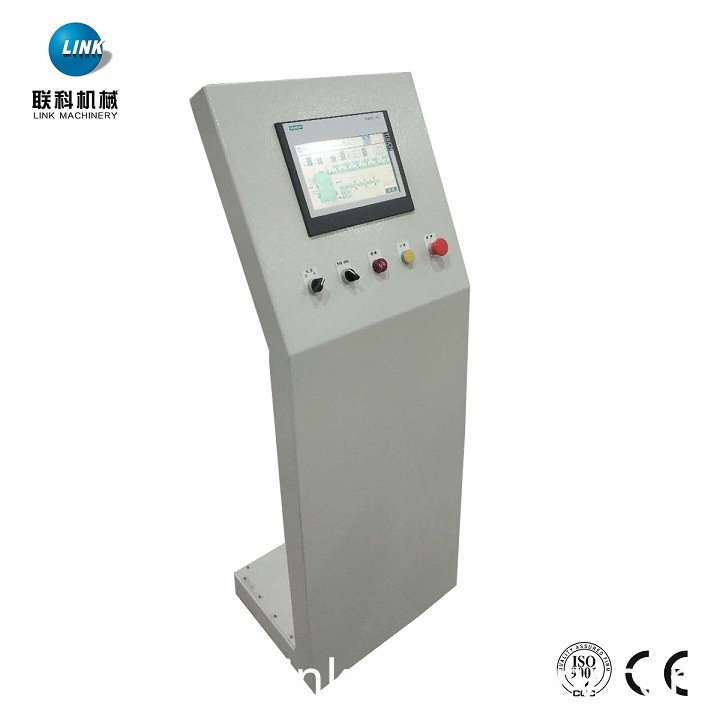

01 The whole machine touch screen operation, controlled by PLC program, use high quality sensors, precisely control the process of input conveyor,packing, PE film hot shrinkage, trapping, climb, high position conveying, accurately falling.

02 The machine use intelligent automatic color separation control system. Packed rolls are sent to the appointed cloth carts by high position conveyor. Reduce the worker's labor intensity, avoiding errors.

03 Rolled cloth with different diameter can be automatic detected by latest infrared detector. Then machine adjust PE film conveyor according to roll diameter and precisely cutting and packing. So that efficiently save PE film consume.

04 The height of main seal blade and side seal blade can be precisely adjusted according to the roll diameter size, which can be detected by infrared detector. So that seal interface will be in the middle of roll and packed roll will look beautiful.

05 The machine configuration can be customized by special requirement and can choose automatic weighting device and labeling device, to reduce error from hand labeling and save laboring.

optional structure

01 Labeling machine: Can realize automatic print and stick label after connected with customer's ERP system.
02 Hot shrinkage device: This device apply to the hot shrinkage of PE film for packed roll, making packed roll tight and beautiful.
03 Overturn forklift device: This device apply to pour roll for the rolled cloth in the carts before sending to packing machine, saving laboring.
04 Climb device: This device apply to the packed roll that need to climb to the high position conveyor.
